Description

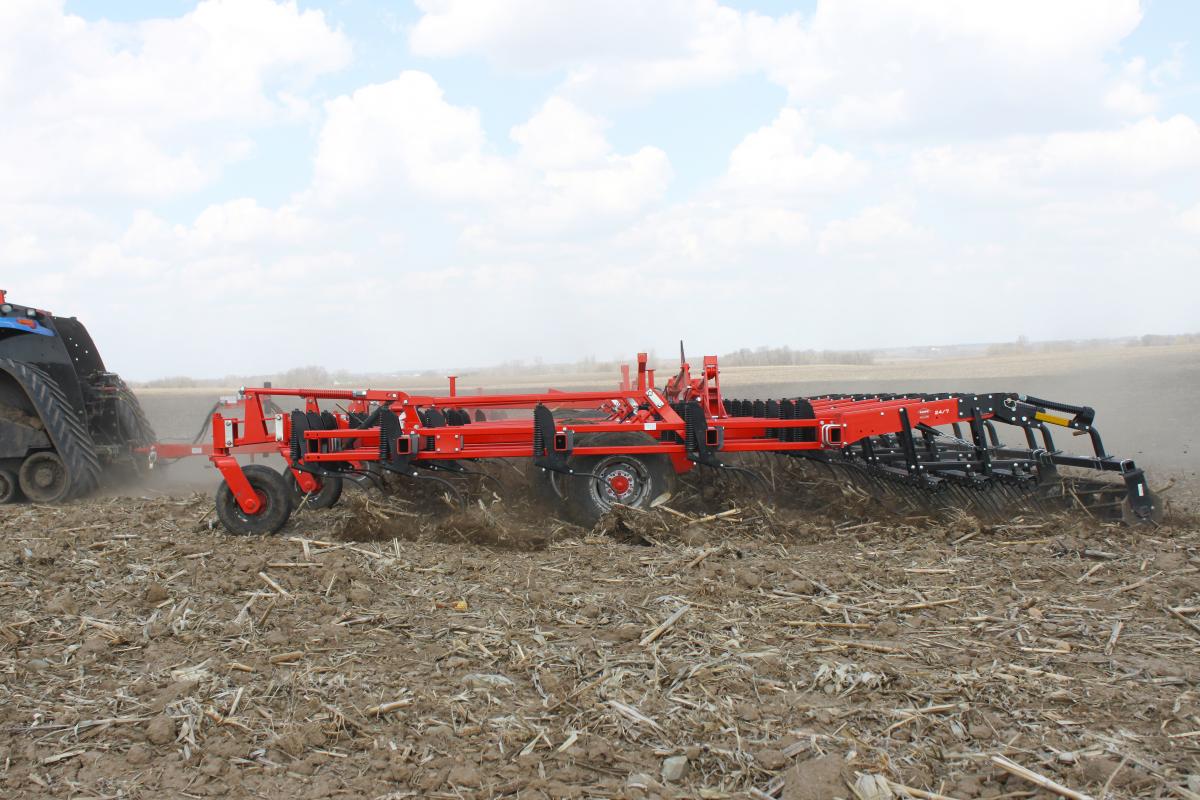

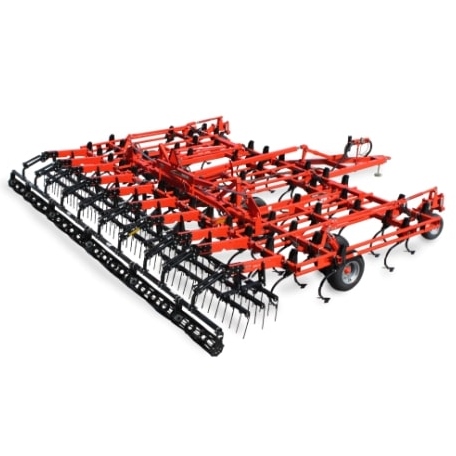

5635 Field Cultivator
The KUHN Krause 5635 field cultivator, with its 5 rows of shanks, provides the residue flow necessary to work in today’s high-yielding cash crop conditions, while shanks on true 6″ spacing and split-the-middle shank pattern ensure that volunteer weeds are removed across the entire width of the machine. Features such as the exclusive floating hitch design and positive stop depth control ensure working depth remains consistent for even germination and uniform emergence.
Create the Ideal Seedbed
- Mix
The 5635 field cultivator provides increased residue flow through the five rows of shanks in high residue conditions. - Cultivate
Uniform cultivation with the split-the-middle sweep pattern removes green growth leading to better seed-to-soil contact - Enhance Seedbed Condition
The 24/7® leveling systems create a smooth, level seedbed surface for reduced planter row unit bounce, providing consistent seed spacing and planting depth.
Split-the-Middle Design
- The first three ranks of shanks till the full sweep width, while the fourth and fifth ranks till the middles creating a split-the-middle sweep pattern
- Six-inch shank spacing provides maximum tillage action and uniform soil, residue and herbicide mixing
- Front-to-rear frame clearance of 139” allows the 5635 field cultivator to handle high volumes of residue.
Floating Hitch
The exclusive KUHN Krause floating hitch system precisely gauges tillage depth for rolling terrain resulting in fast, even emergence. Uniform tillage depth creates consistent soil moisture in the seed zone allowing seeds to draw moisture from the surrounding soil at the same rate. This enhances even seedling emergence, which is critical for maximizing yield potential. Conventional hitch designs do not contour to rolling terrain, gouging deeper on hilltops and running too shallow in valleys. This can cause uneven emergence and immediately affects final yield potential.
Specs
| Working width (feet) | 20′ 6″ – 50’ 6” |
| Frame type | Folding – Quad Fold |
| Number of wheels | 10 – 16 |
| Number of Shanks | 41 – 101 |
| Shanks spacing (in) | 6″ |
| Transport width (feet) | 13′ 3″ – 15’ 9” |
| Transport Height (feet) | 10′ – 14’ 8” |
| Number of sections | 3 – 5 |
| Weight (lb) | 8,877 – 16,871 |
| Tractor Power (hp) | 120 – 400 |
