Description
4830 In-Line Ripper

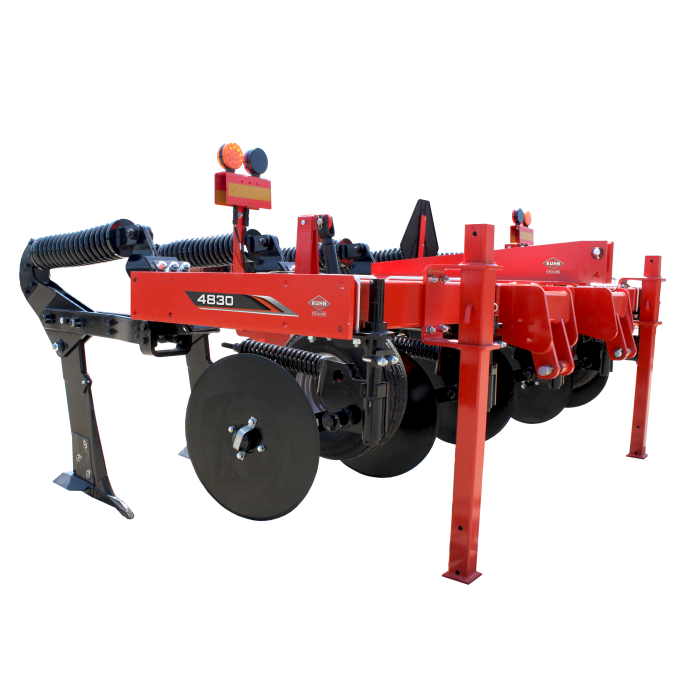

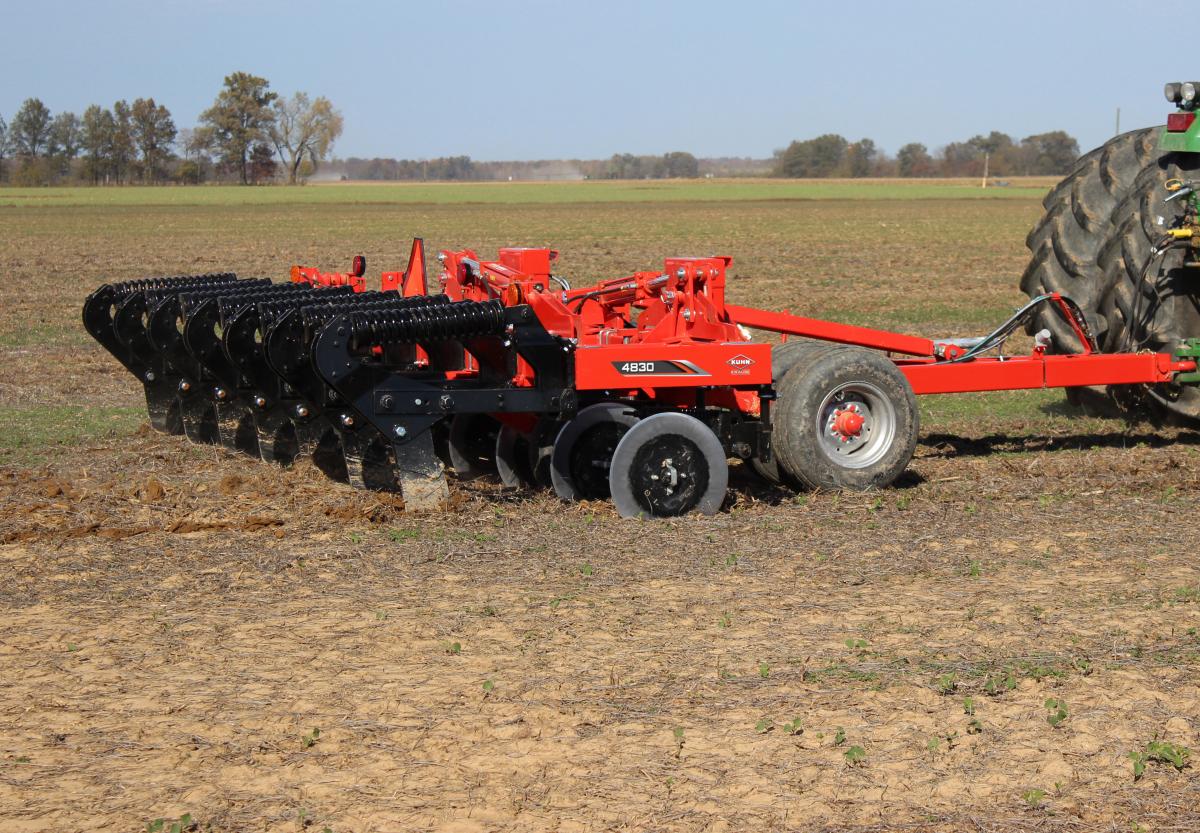

The KUHN Krause 4830 in-line ripper is the ideal tool to fight soil compaction, one of the leading causes of yield reduction. With working depths of 8” to 16”, the 4830 provides maximum soil fracturing, while allowing crop residue to remain undisturbed on the surface. This allows for greater root development and water infiltration into the soil, and effectively reduces runoff and soil erosion. KUHN Krause 4830 in-line rippers are available in 4- to 7-shank rigid models and 6- to 9-shank flat folding models, with shank spacing choices of 30”, 36”, 38” or 40”. The unique 180-degree, flat-fold configuration makes transport and storage more convenient. The 4830 can be equipped with spring reset shanks or rigid, shear-bolt protected shanks for soils where rock is not a concern. There are a variety of points available depending on your agronomic needs.
Specs
| Working width (feet) | 12′ 6″ – 26’ 8” |
| Number of coulters | 5 – 9 |
| Coulter size (in) | 22″ |
| Number of wheels | 2 |
| Number of Shanks | 5 – 9 |
| Shanks spacing (in) | 30” – 40” |
| Transport width (feet) | 11′ 1″ – 14’ 5” |
| Number of sections | 1 – 3 |
| Frame type | Rigid or Folding |
| Weight (lbs) | 2,660 – 6,947 |
| Working depth (min.) (inches) | 8″ |
| Working depth (max.) (inches) | 16″ |
| Tractor Power (hp) | 100 – 360 |
| Recommended Operating Speed (mph) | 4 – 7 |
